Linea di produzione dei tovaglioli di tessuto non tessuto da materiale da 55-70 gr/
Production year: Manufacturing machine for napkin production 2015
Description of the line:
Complete solution for production of high-end quality napkins.
Fully controlled and synchronized by PLC, which ensures high efficiency on the line of producing and packaging.
Construction of the line is from steel plates thickness 20, 30 and 40 mm in accordance with ISO 9001 standard and with levels of noise according to current standards. The machine will be accompanied by a user manual and instructions, line poses CE certificate.
Basic technical characteristics:
-Electricity: 3 phase x 380V - 50/60Hz + ground + zer
-Compressed air: 6 bar, < 900 l/min
-Number of operators: 1 operator
-Napkin size : 330 X 330 mm
-Design speed : Without print: up to 400 m/min, 1/4-fold
-Average working speed: 300 m/min
-Average speed with printing unit : 250 m/ mn
General characteristics:
-Paper roll diameter : Up to 1.500 m
-Paper core diameter : 76 mm.

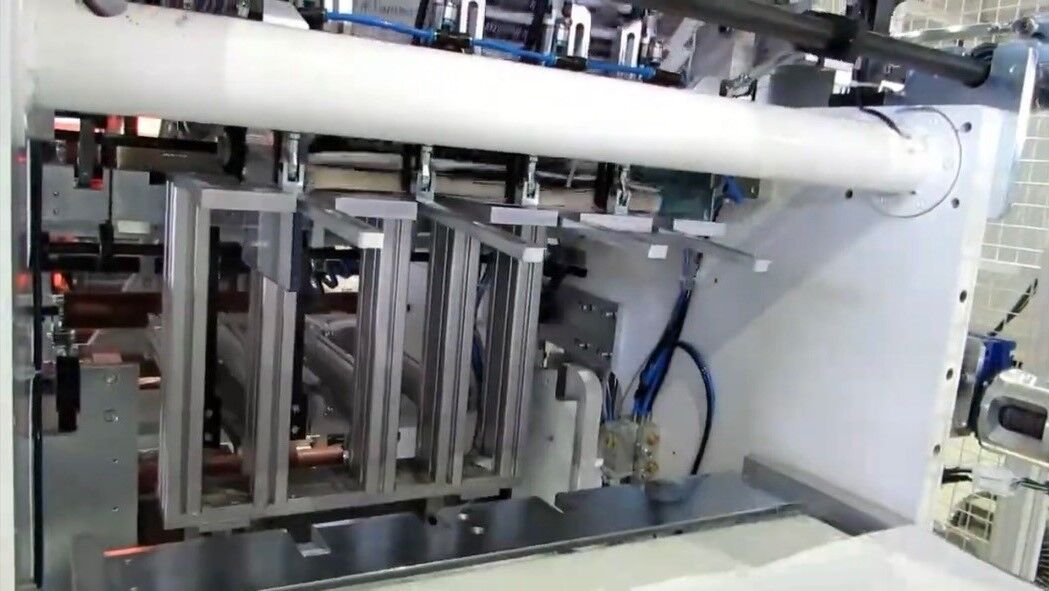

-Folding unit : Mechanical with grippers.
-Napkin dimensions - unfolded : 330 x 330 mm.
-Machine color : white
-Noise level : > 82 dB
-Line dimension – meter L/W/H : ≈ 20 x 6 x 3m
-Line weigh : ≈
Pneumatic:
-Installed power : ≈ 45 kW.
-Electrical cabinet power : 380 VAC
-Control voltage : 24 VDC
Price richiesto: 350000,00 Euros
Se puo discutere
